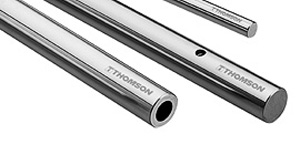

Thomson 60 Case Quick 軸系
授權Thomson分銷商或終端用戶可預先訂購Thomson60 Case Quick ，以防止第三次轉換失敗或其他緊急情況。 通常分銷商鐘意于自身訂購機器長度尺寸零件，并不想購買或出售其他長度尺寸的零件。 所有Thomson Quick Shaft軸系是將油保留并放置在VCI包里，可長時間存儲，標簽標記方便使用。
Thomson Linear Motion Optmized
60 Case Quick 規格:
| 直徑/長度 范圍 |
等級描述 | 選項 | 材料 |
|---|---|---|---|
| 英寸: 直徑 1/4至2英寸 長度: 6至72英寸 |
L:XA，開，可調節滾珠 襯套軸承和軸 臺，Super bearings和 Super Smart 軸承 |
標準 預鉆孔 鉻板 平接 |
碳鋼 440C不銹鋼 52100管形 |
| 公尺: 直徑 10至40mm 長度 250至2000mm |
MM: 和公制滾珠襯套一起使用(ISO H6 容差) 僅限碳鋼 |
標準 |
碳鋼 |
60 Case快速導向軸優點：
- 英制和公制尺寸
- "L"容差等級英寸 和 "MM" 容差等級英尺
- 標準碳鋼，440C不銹鋼，52100管形
- 預鉆孔和鉻板平接標準選項
60 Case® LinearRace® Shafting: Fully Stocked to Keep Your Design Projects on Track
Thomson 60 Case Linear Race shafting has been popular for decades for its consistent reliability and performance. To help customers get this high-quality, lab-tested product into their hands as quickly as possible for their time-sensitive design projects, Thomson goes to great lengths.
Shafting Selector Tool: Special Machining Online Demo
With the special machining add-on to the Thomson online shafting selector tool, the burden of creating 2D drawings is relieved, and the amount of time needed to specify the machined shaft is dramatically reduced.
Watch this comprehensive demo and see how this feature offers the most commonly used machining options, which are automatically converted to manufacturable 2D drawings for download as printable PDFs or sharable links.
Try the online shafting selector tool and special machining add-on at: https://www.thomsonlinear.com/en/products/shafting
For any cases in which your machining configurations don't fall within the scope of our tool's options, Thomson application engineers are always ready to provide fast help.
