        2HB (AccuSlide) Linear Tables

        2HB（AccuSlide）直線工作臺

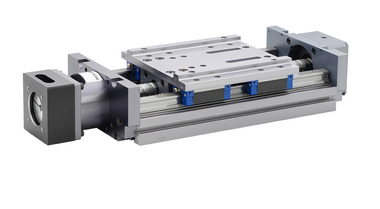

        Thomson's 2HB (AccuSlide) is a high performance slide table based on Thomson's continuously supported, ProfileRail system using square rail technology. The units are designed to absorb extremely high load torques and offer superior performance life in difficult applications.

        型號瀏覽

        產品介紹

        Let Thomson Help You Make Your Selection!

        2HB Linear Table Specifications:

        Specifications / Shaft Size  2HB10 2HB20
         Profile size (width x height): mm (in)  100 x 60 (3.9 x 2.4) 200 x 90 (7.9 x 3.5)
        Max Stroke Length: mm (in)  1375 (54.13)  2760 (108.7)
        Max Linear Speed: m/s (in/s)  0.47 (18.5)  0.75 (29.5)
         Max Acceleration: m/s2 (in/s2)  9.8 (386)  9.8 (386)
        Repeatability: ± mm (in)  0.005 (0.0002)  0.005 (0.0002)
         Max Input Speed: rpm (rev/s)  2800 (46.7)  1800 (30)
        Operation Temperature Limits: °C (°F)  -20 to 80 (-4 to 176)  -20 to 80 (-4 to 176)
        Max Dynamic Load Fx: N (lbf)  2100 (472)  4697 (1056)
        Max Dynamic Load Fy: N (lbf)  8000 (1798)  34000 (7644)
         Max Dynamic Load Fz: N (lbf)  8000 (1798)  34000 (7644)
         Max Dynamic Load Torque (Mx): Nm (lbf-in)  279 (2469)  2463 (21799)
         Max Dynamic Load Torque (My): Nm (lbf-in)  216 (1912)  1903 (16843)
        Max Dynamic Load Torque (Mz): Nm (lbf-in)  216 (1912)  1903 (16843)
        Max Drive Shaft Force (Frd): N (lbf)  533 (119.8)  533 (119.8)
        Max Drive Shaft Torque (Mta): Nm (lbf-in)  1.86 (16.5)  15.5 (137.2)
        Screw Diameter: mm (in) 16 (0.63) 25 (0.98)
        Screw Lead: mm (in)  5, 10 (0.2, 0.4)  5, 10, 25 (0.2, 0.4, 1.0)
        Weight: kg (lb)
        of unit with zero stroke
        of every 100 mm of stroke
        of each carriage
        2.59 (5.71)
        0.69 (1.52)
        0.82 (1.81)
        13.32 (29.37)
        1.70 (3.75)
        4.47 (9.86)

        2HB Linear Table Feature Highlights:

        • An integral ball screw assembly
        • T-slots in carriage
        • Low profile and compact
        • Long travel life capability
        • Double acting seals

        2HB Linear Table Option Highlights:

        • Bellows way covers
        • Shroud covers
        • Limit switch packages
        • Radial mount ball screw shaft extenders
        • Lubrication system
        查找產品

        The Linear Motion Systems Product Selector is Temporarily Unavailable

        Click the button below to use the newest edition of our industry's most advanced sizing and selection tool for linear motion system: LinearMotioneering.

        Sizing And Selection Tool

        Image above: The LinearMotioneering Landing Page
        CAD模型

        下載以下模型，請先登錄

        登錄
